f[GP2013
EX Class
Entry No.01

Valera Mashirov

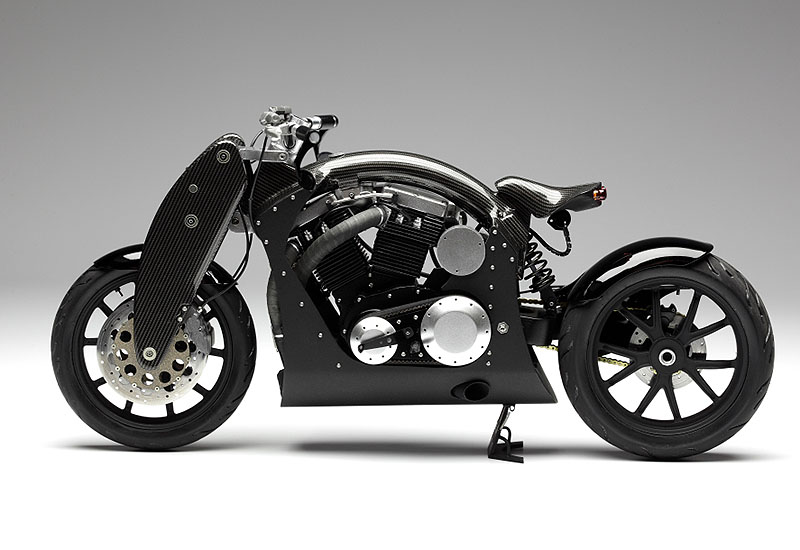

Confederate B91 Wraith 2006 version

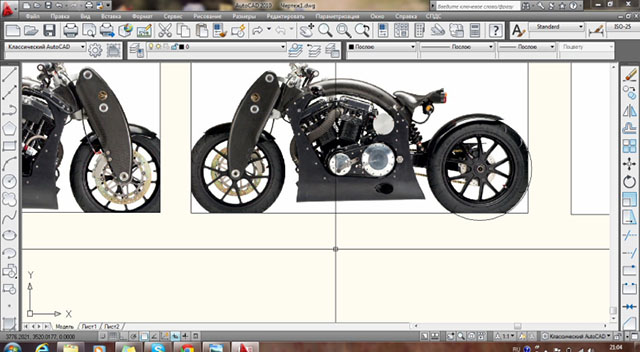

Construction drawings for the model with the help of CorelDrow

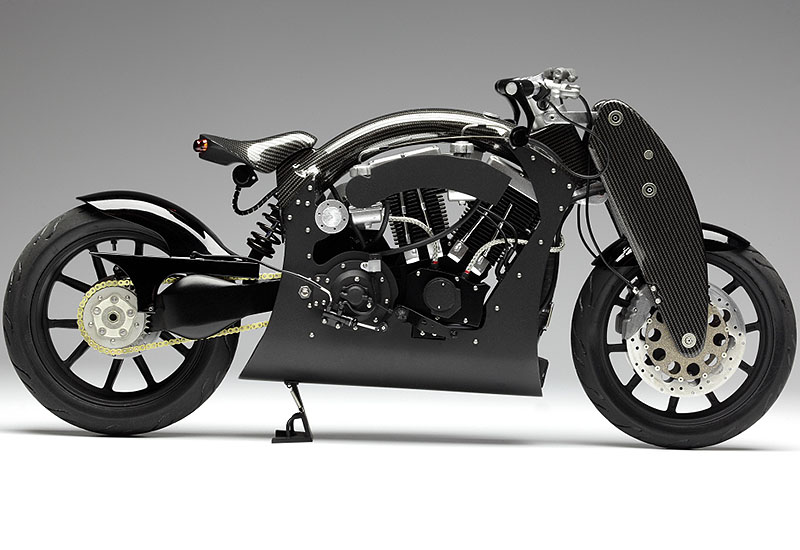

Photos from the right perspective I found on the website of the company, many thanks to their photographer :)

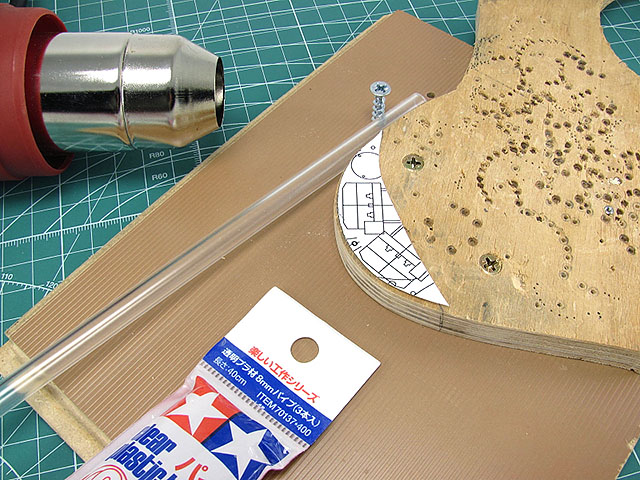

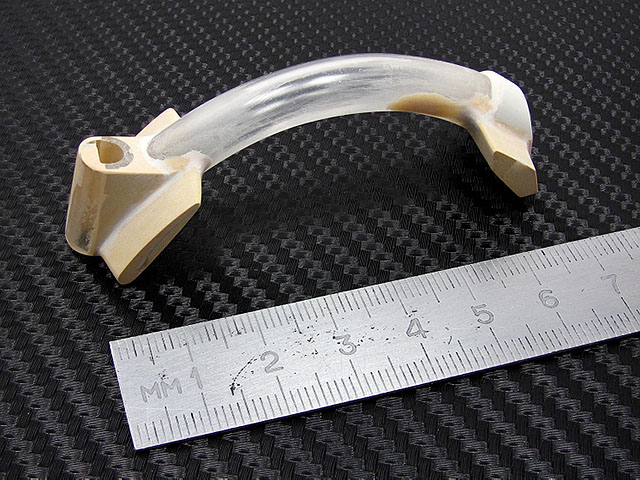

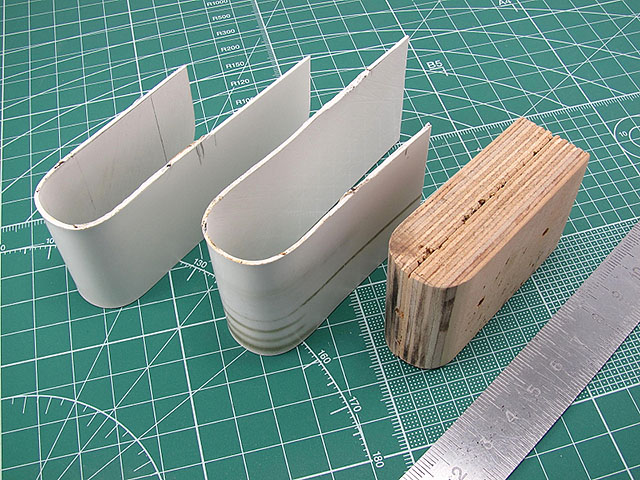

Manufacturing of frame (oil container): I made & #8203; & #8203; a template out of plywood,
then I arched up from the "clear plastic beam" from TAMIYA (item 70137) with help a hot air gun.

Rompleted forms with putty.

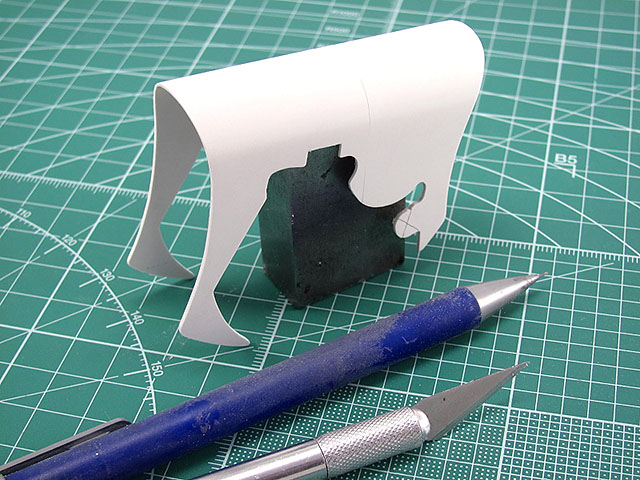

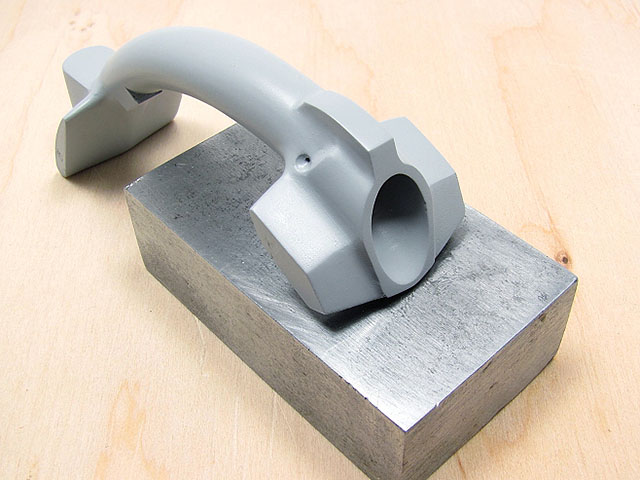

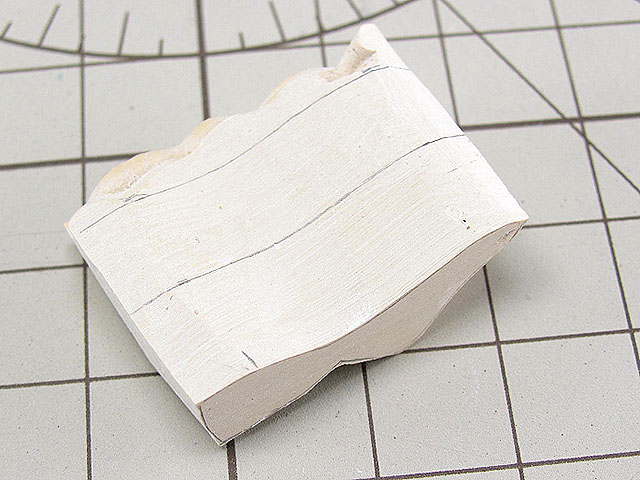

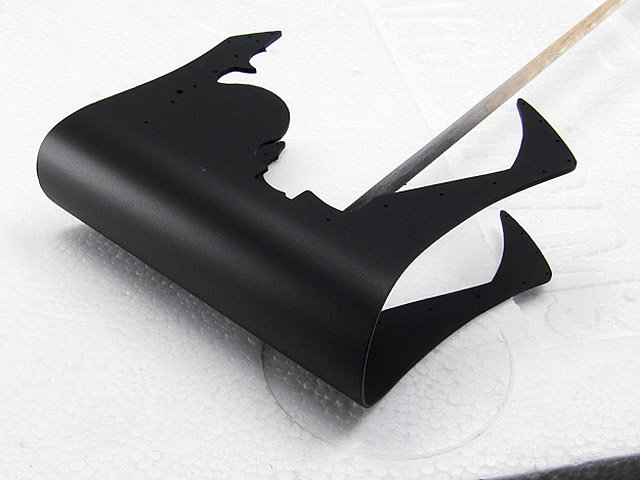

Creating the lower fairing (tank + frame):
I made ​​a template out of plywood;
base - white plastic 1mm;
warmed and bent with the aid of industrial dryer.


Creating the lower fairing (gasoline tank + frame)


Creating the lower fairing (gasoline tank + frame)

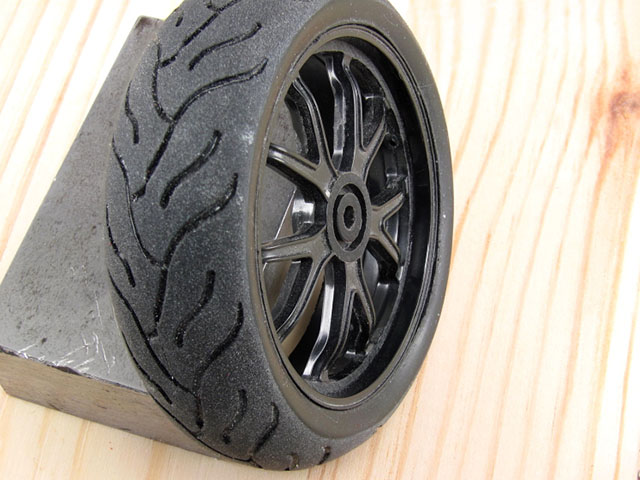

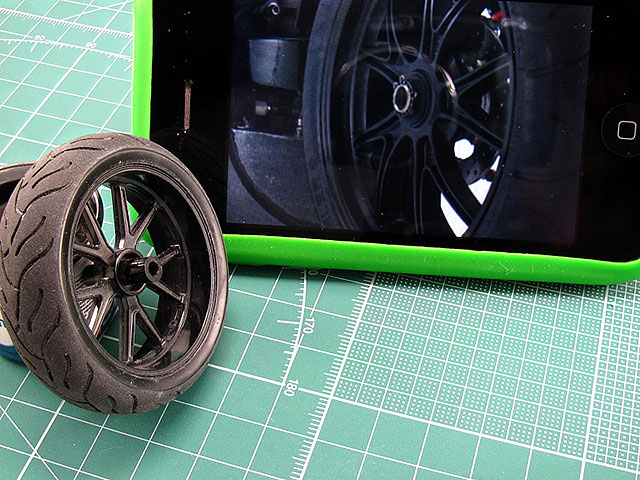

Creation of wheels:
I bought a toy figure with same wheel disk as in my prototype - it is 1/12 Benelli Tnt Titanium from "Maisto"


but .. the problem is that the rear wheel "Benelli" has a central position rays.
Confederate has shifted position of the rays from the center to the left:

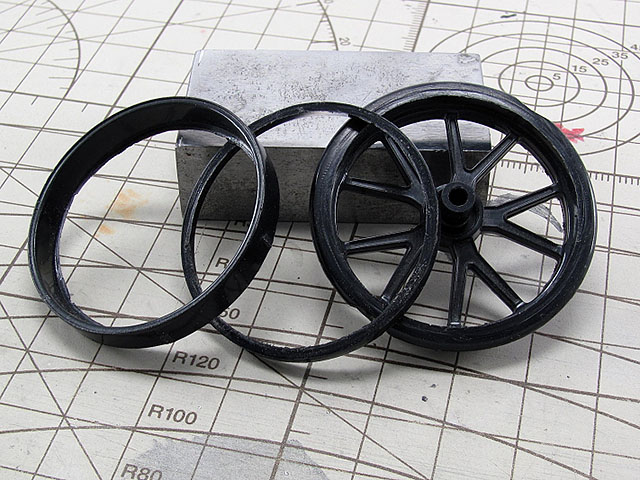

To fix this I cut the disk into three unequal parts:

That would bend the rays like in the Confederate rear wheel I made ​​a template.


Using a hot air gun I curved beams into the needed position.

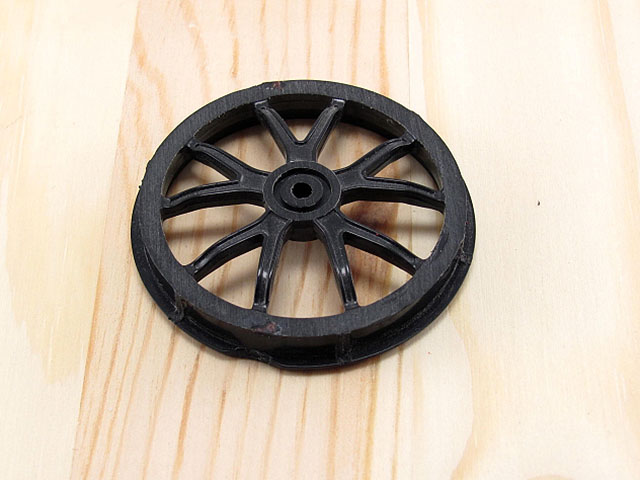

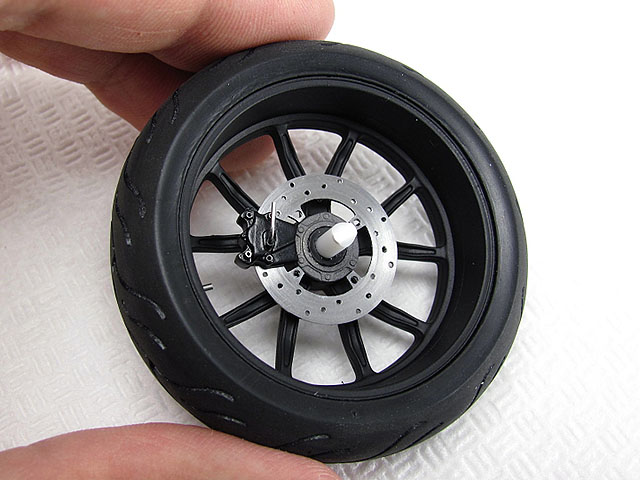

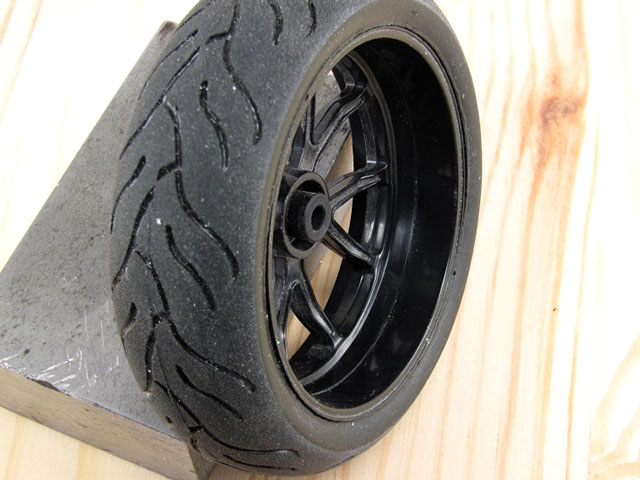

The completed rear wheel:

The completed rear wheel:

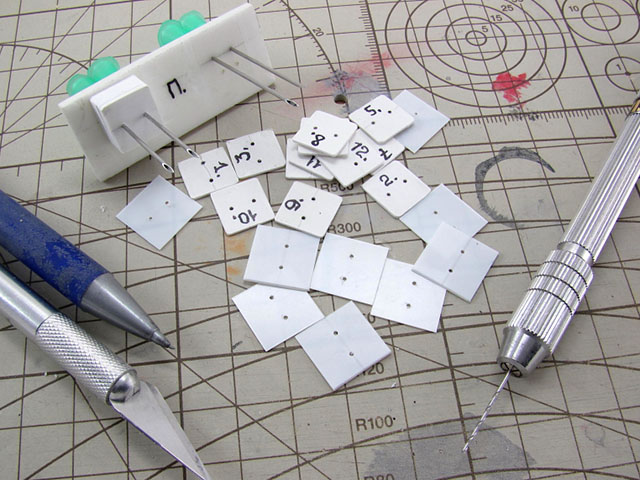

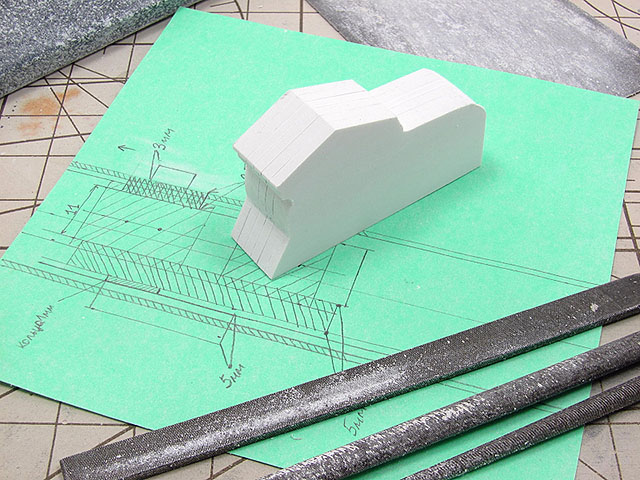

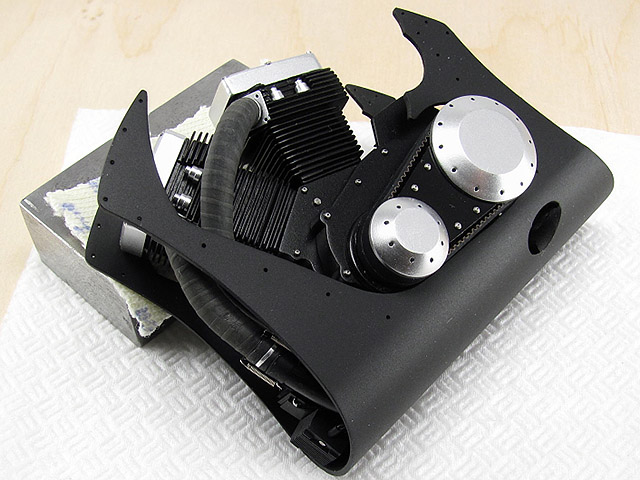

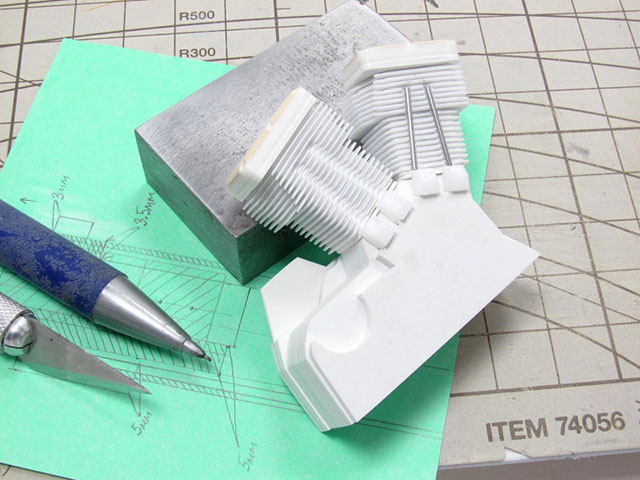

Creation of engine:

Creation of engine:

Creation of engine:

Creation of engine:

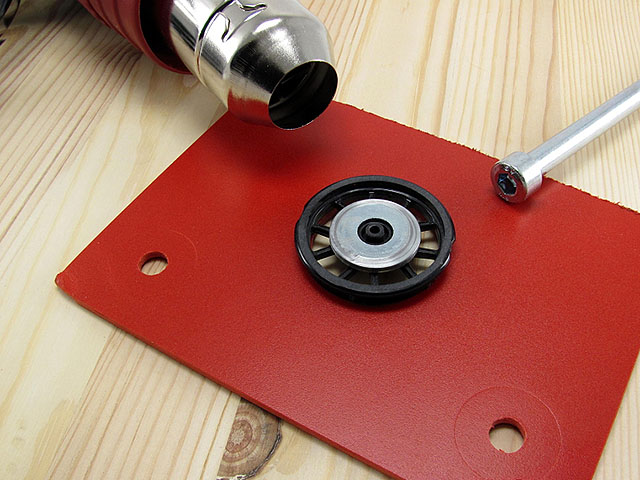

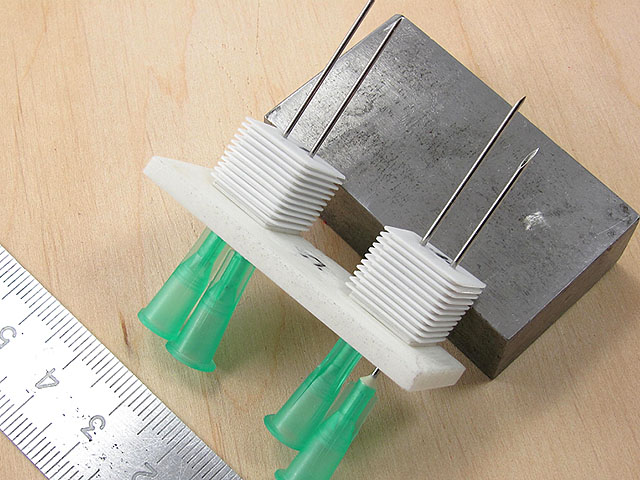

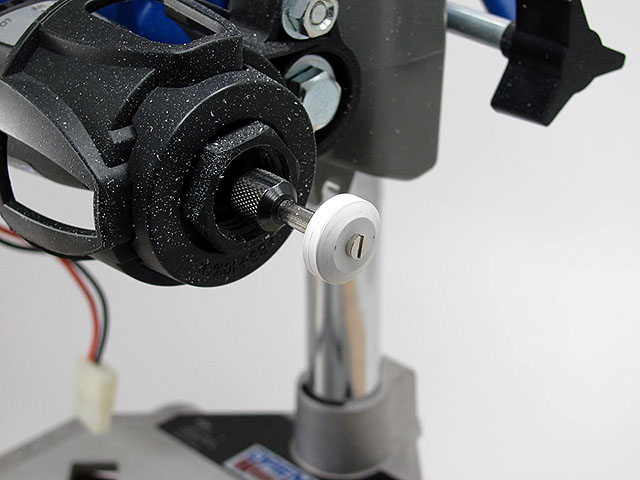

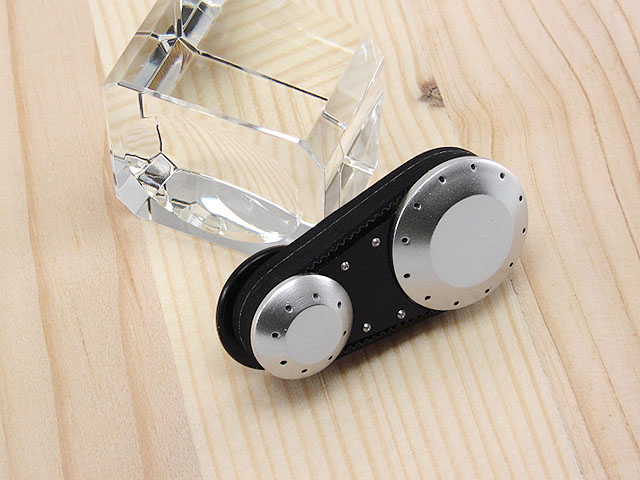

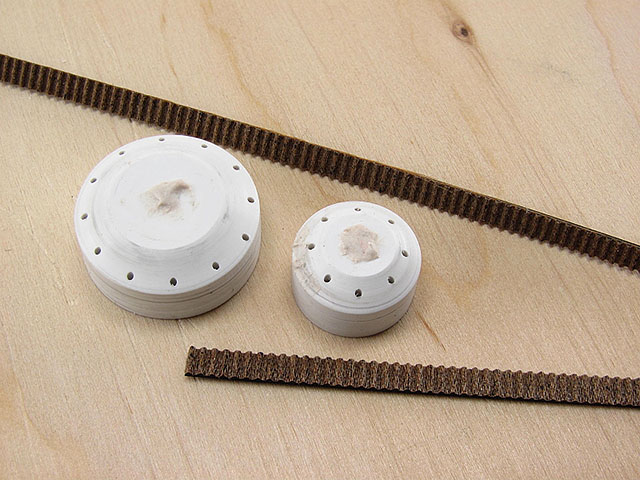

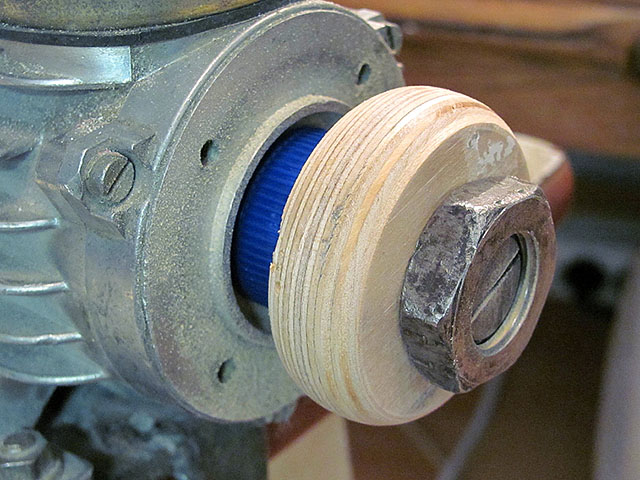

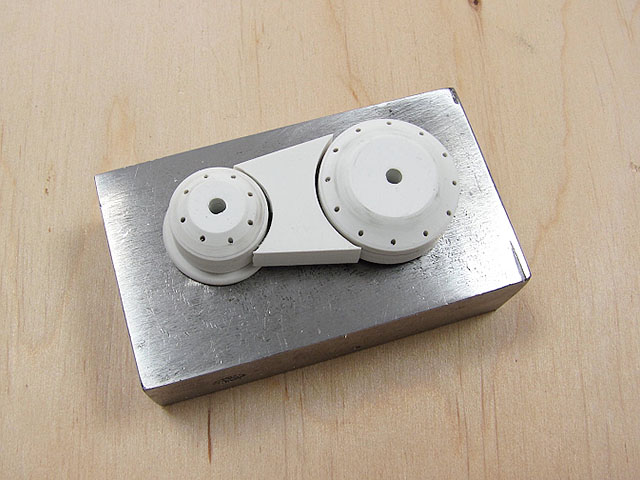

Manufacturing of pulleys:

Manufacturing of pulleys:

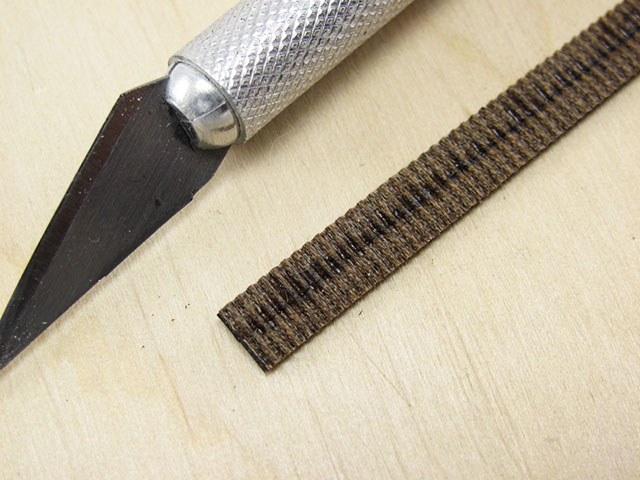

Rubber timing belt I picked up from the printer carriage

Cyanoacrylate glue it:

Manufacturing of pulleys:

Manufacturing of pulleys:

Manufacturing of pulleys - Done!

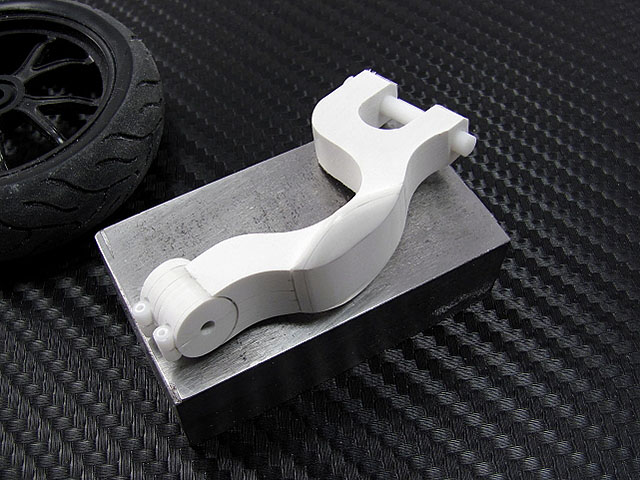

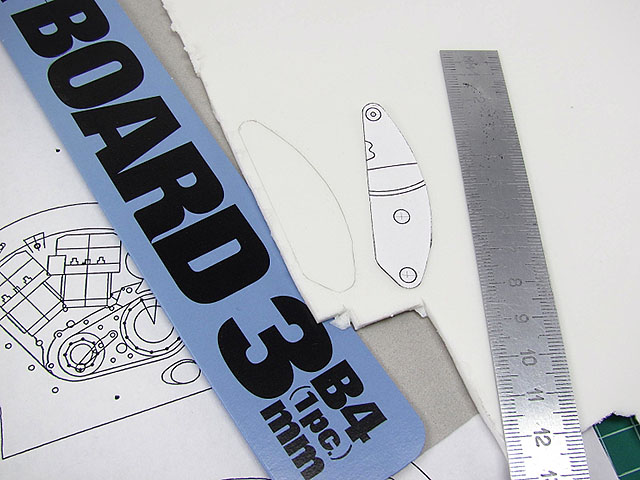

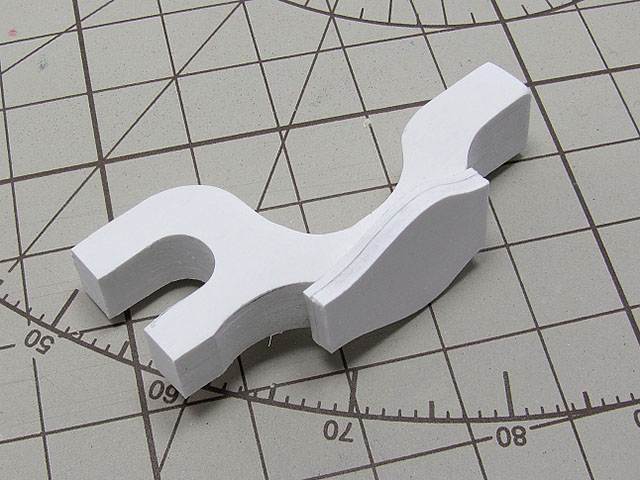

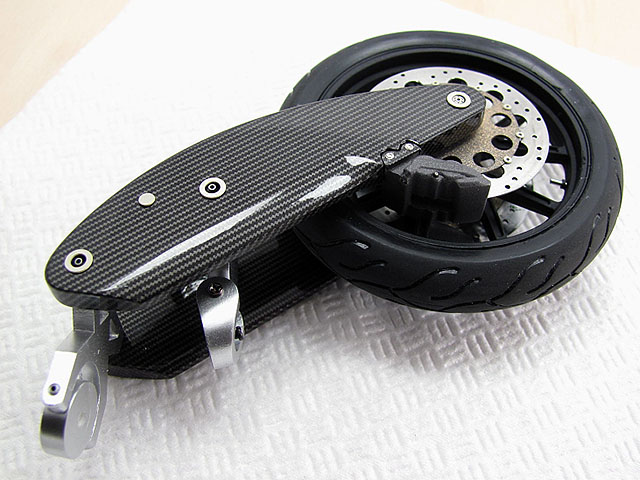

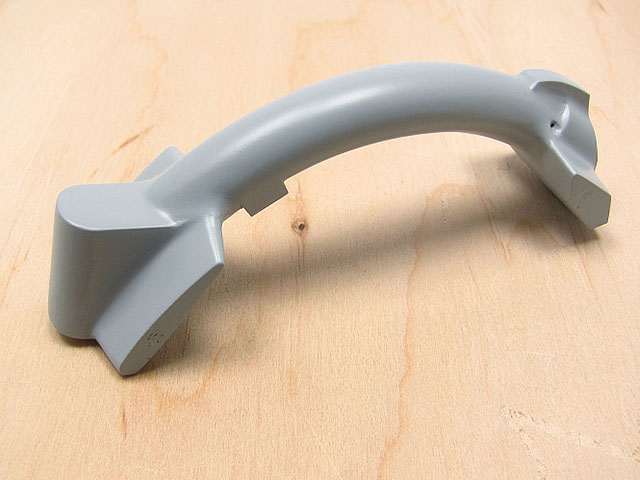

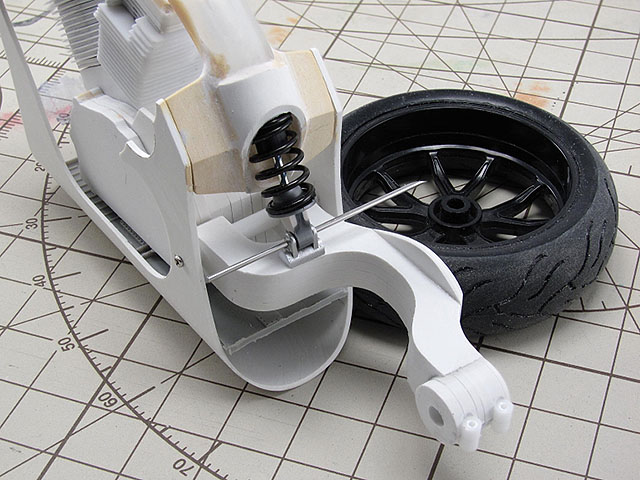

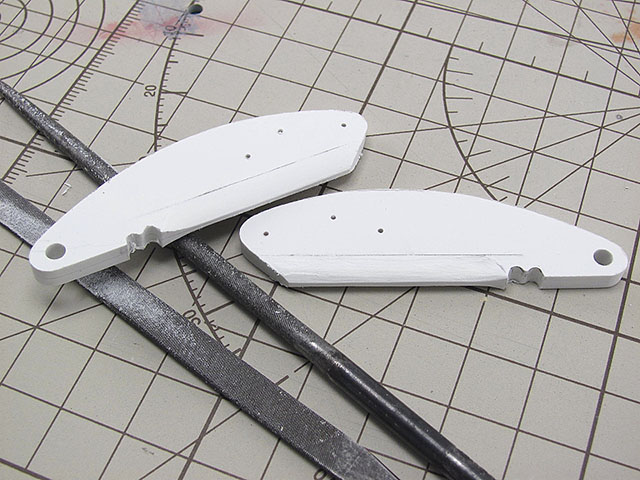

Creating of rear swingarm:

Creating of swingarm:
Materials: plastic 2 mm and putty

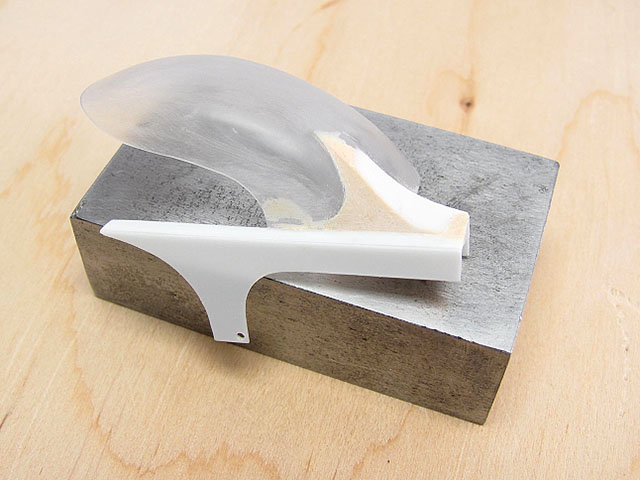

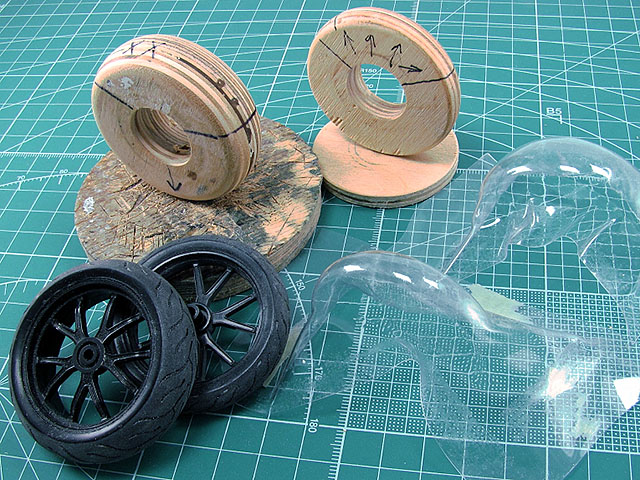

Rreation of mudguards.
Method: vacuum-molding.

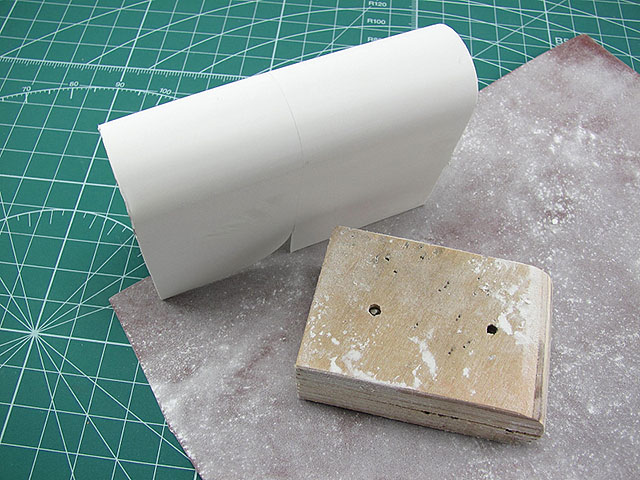

Template:

Rreation of mudguards.
Method: vacuum-molding.
Template:

Rreation of rear mudguard
Method: vacuum-molding

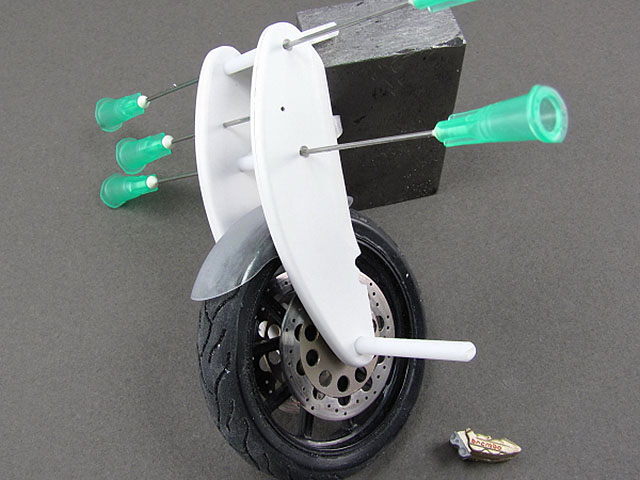

The creation of the front fork:
The creation of the front fork:
The creation of the front fork:

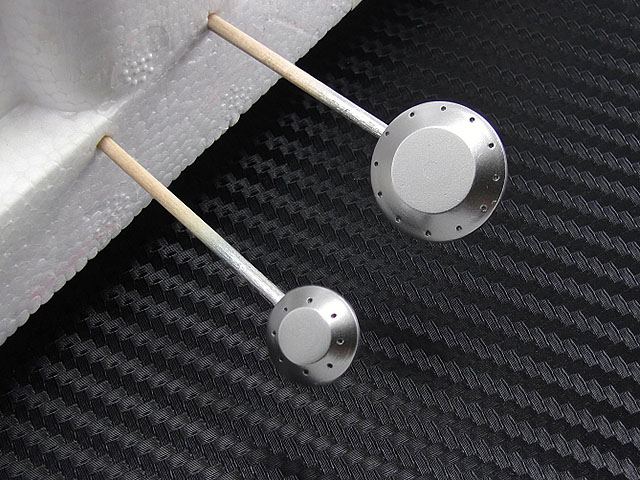

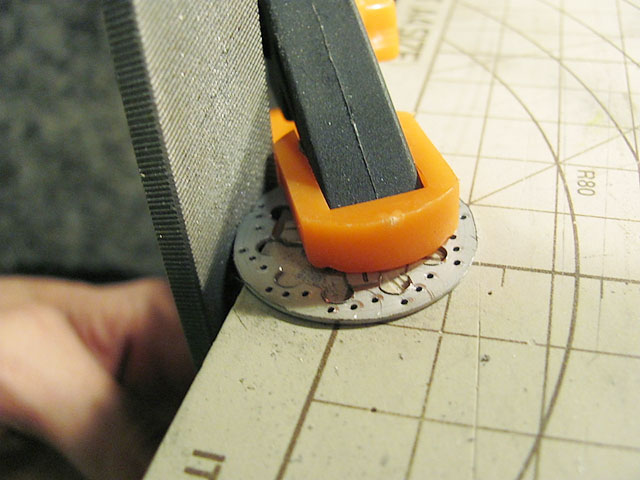

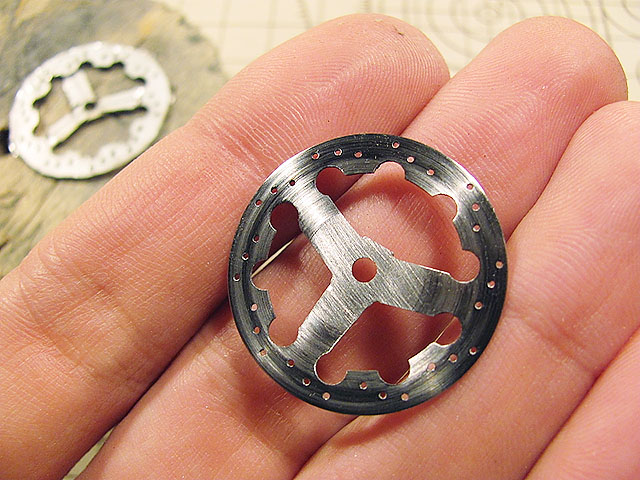

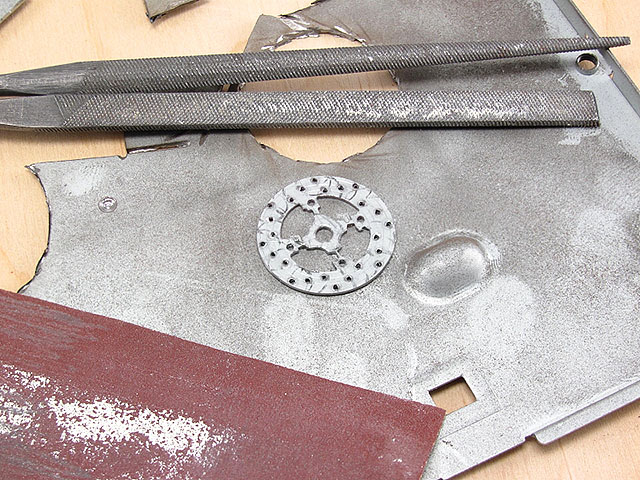

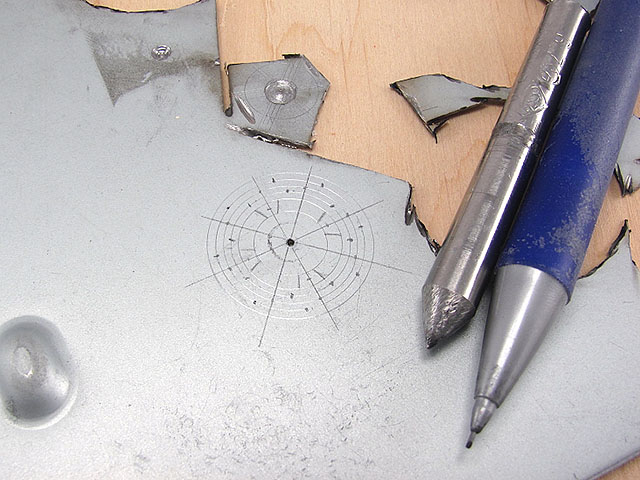

Creation of brake discs:
Base - steel from the CDrom hull
Creation of brake discs
Base - steel from the CDrom hull
Creation of brake discs
Base - steel from the CDrom hull
Creation of brake discs
Base - steel from the CDrom hull

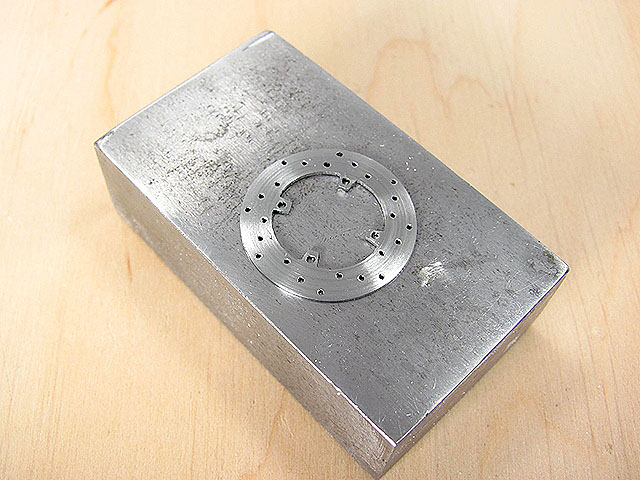

Creation of brake discs
Base - steel from the CDrom hull

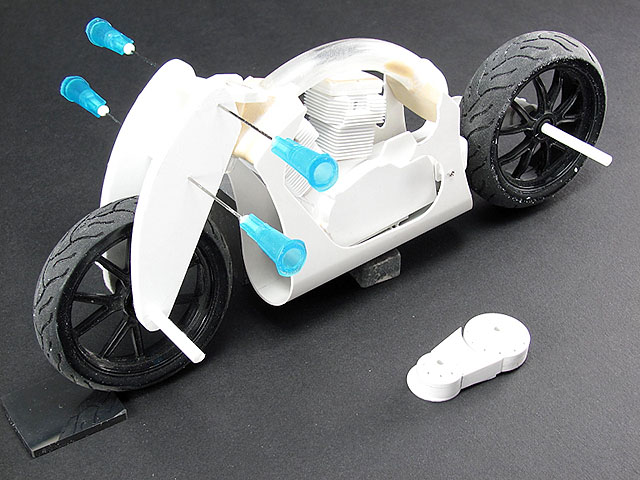

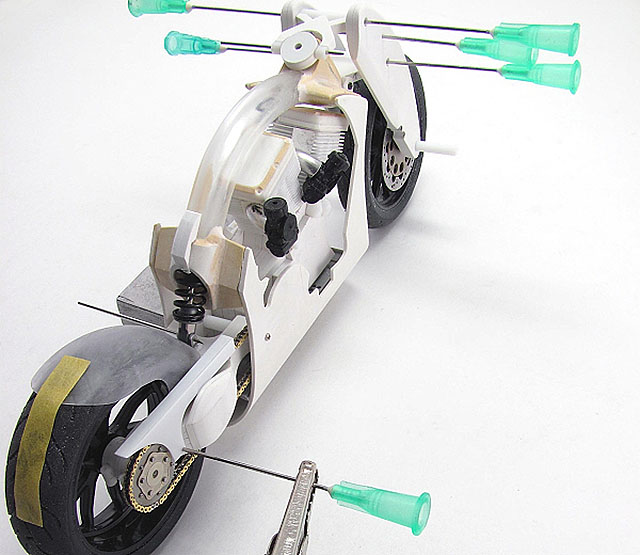

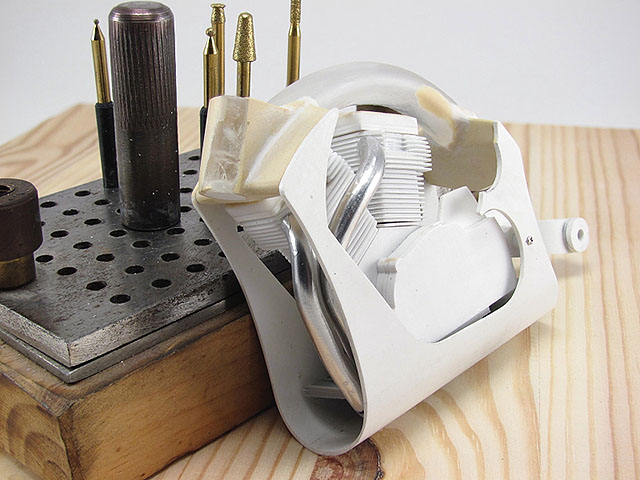

The first fitting parts:

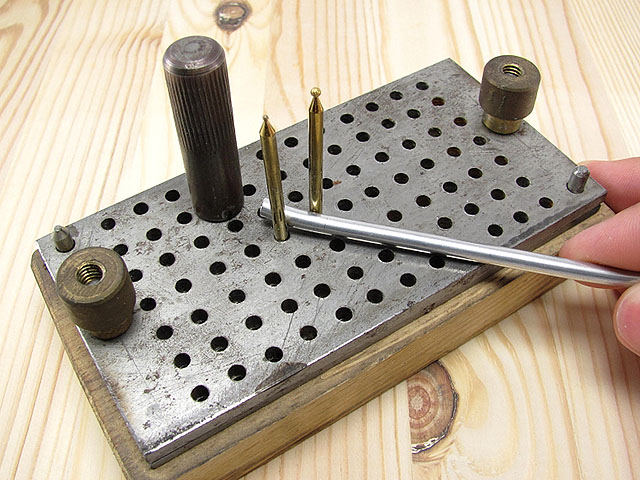

Making the exhaust system:
Base - aluminum wire. I bought it on the radio market :)
Making the exhaust system:
Base - aluminum wire. I bought it on the radio market

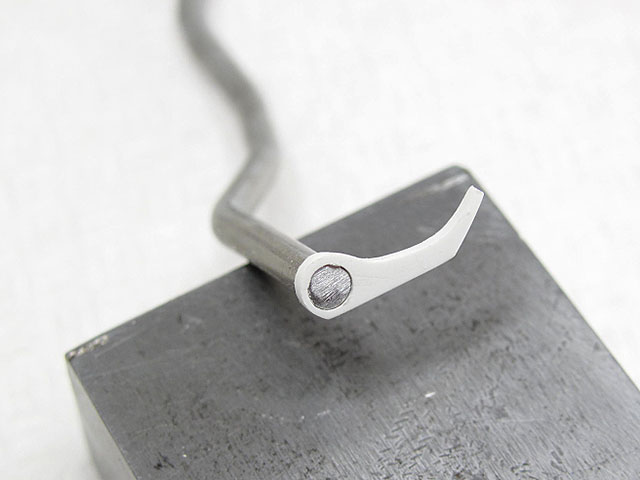

Bending wire:


Fitting an exhaust system:

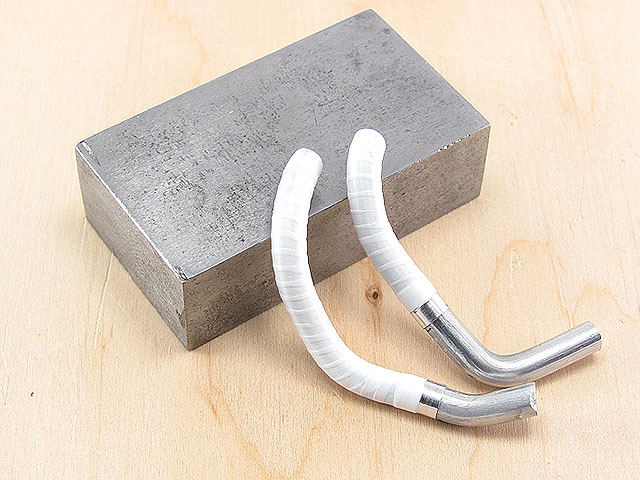

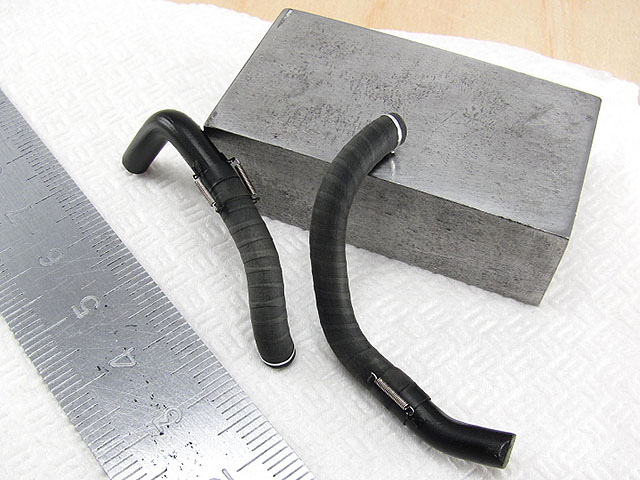

Creating simulated thermal tape:

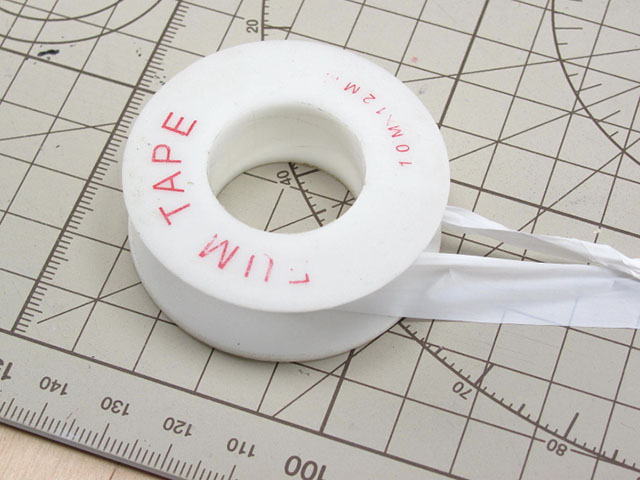

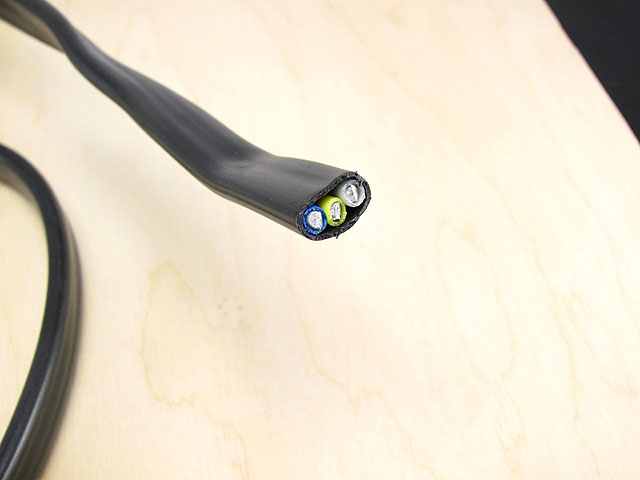

Base simulating thermal tape - waterproofing for water pipes:
Making the exhaust system - the addition muffler springs and Metal hook by "Hobby Design"
Manufacture and fitting of rear shock:

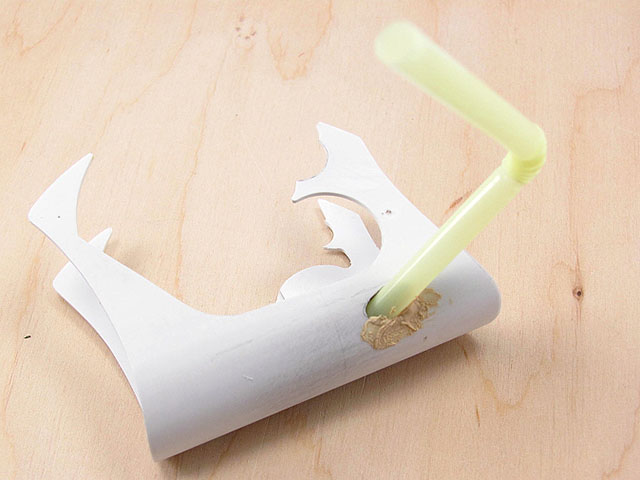

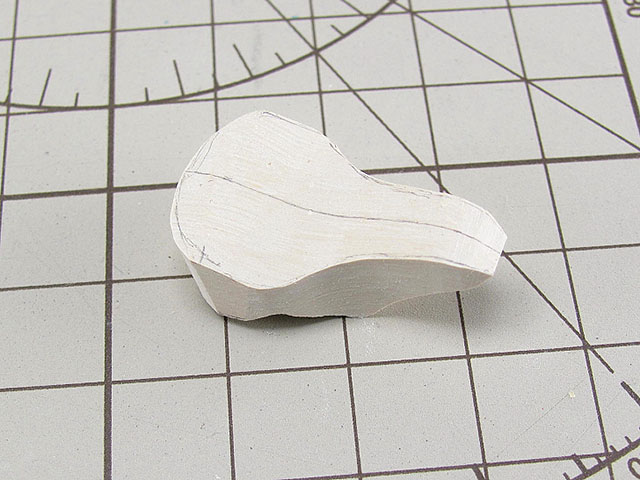

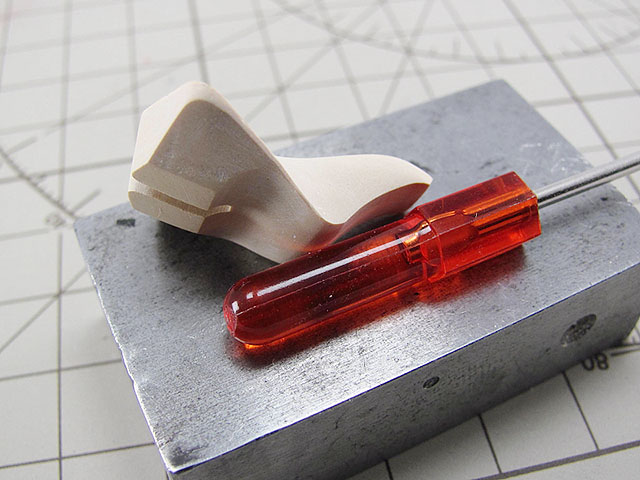

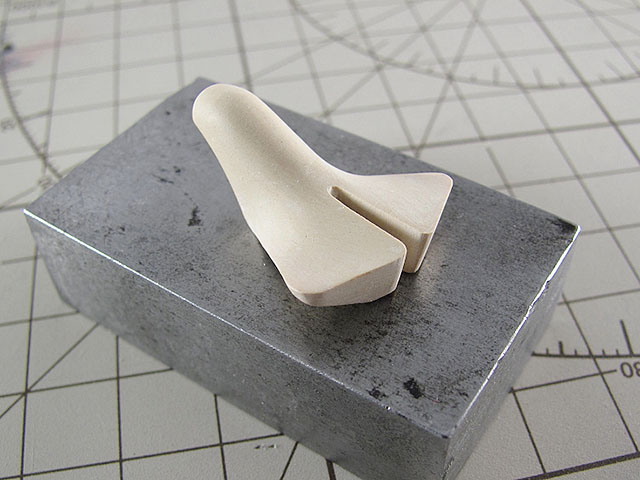

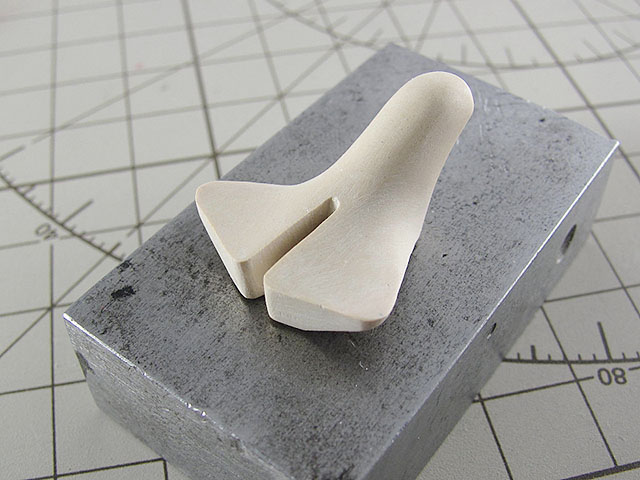

Production of seats:
Production of seats:
Production of seats:
Production of seats:
Production of seats:

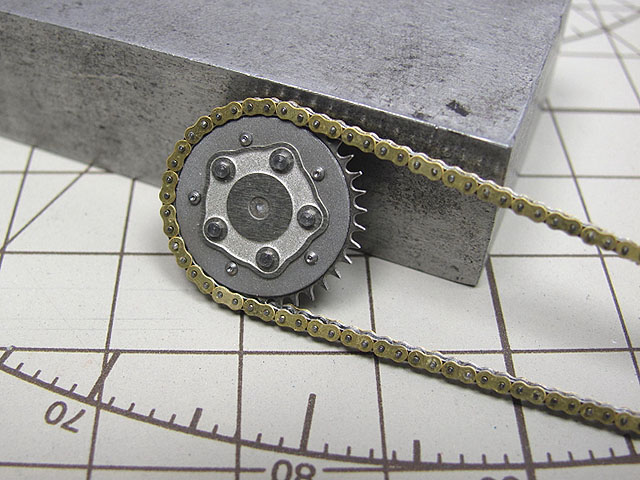

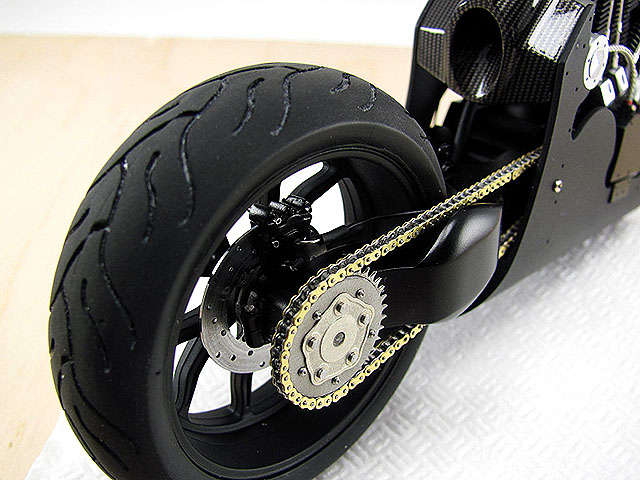

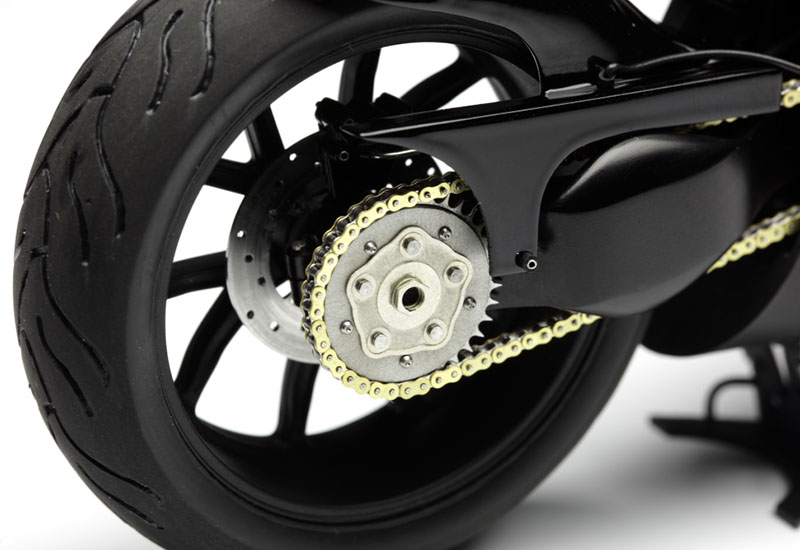

Chain and gear from "Hobby Design" YZR-M1'09
* Rear gear from scratch

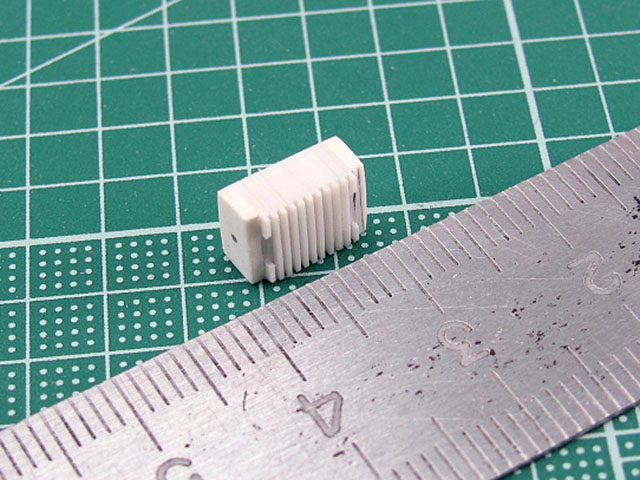

Oil cooler

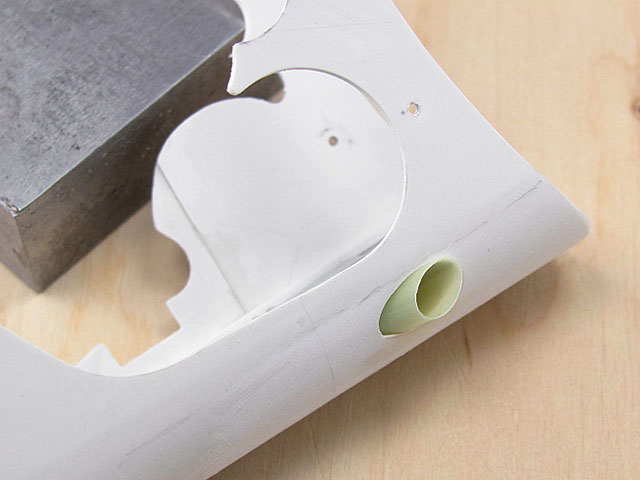

Making a hidden tailpipe:
Base - drinking tube from McDonald's :)


Making a hidden tailpipe:
Base - drinking tube from McDonald's :)

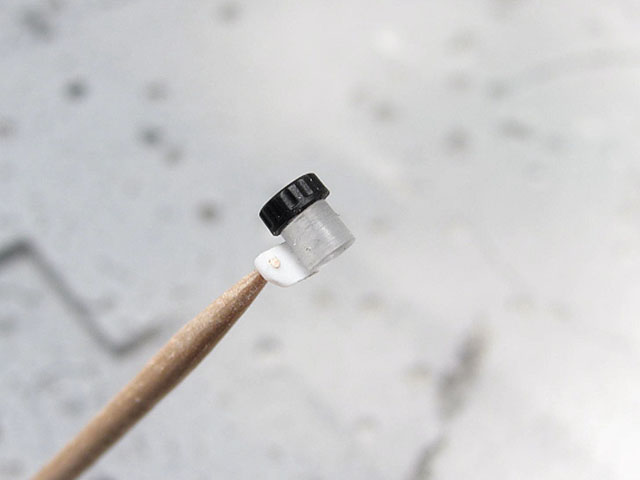

Brake fluid reservoir
Base - a clear sprue sanded round

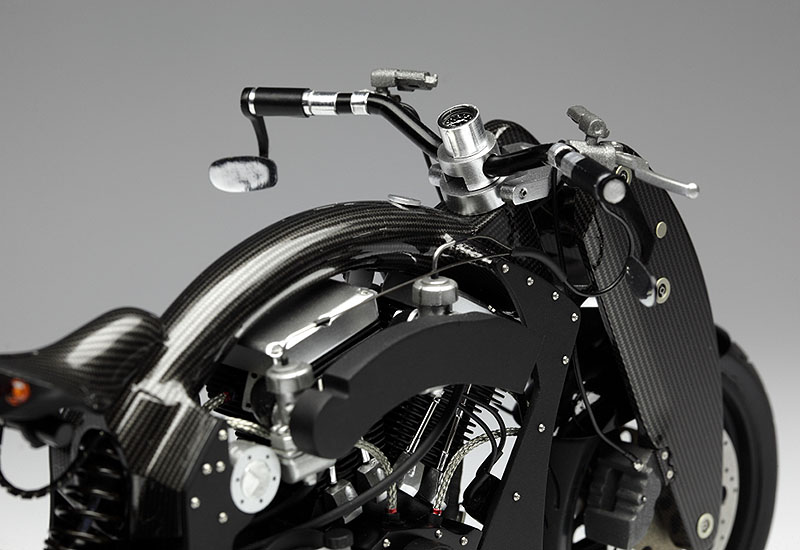

Steering wheel and mount the mirror
base - aluminum wire and plastic 1.5mm


In the process of creating a motorcycle I used different supplements:


Final fitting of all the details of the model of motorcycle

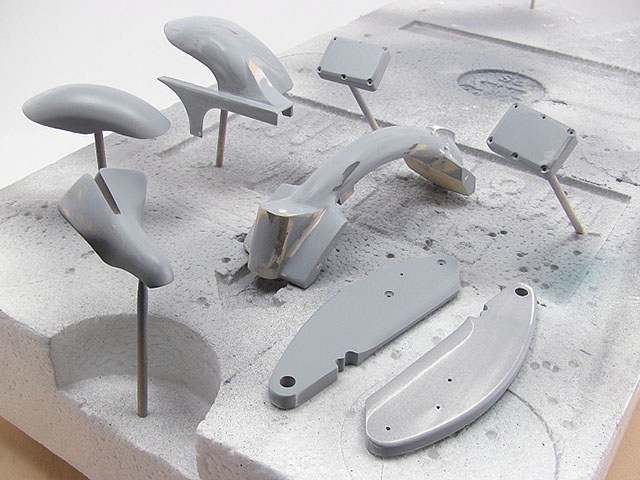

Priming details
Priming details:
Priming details:

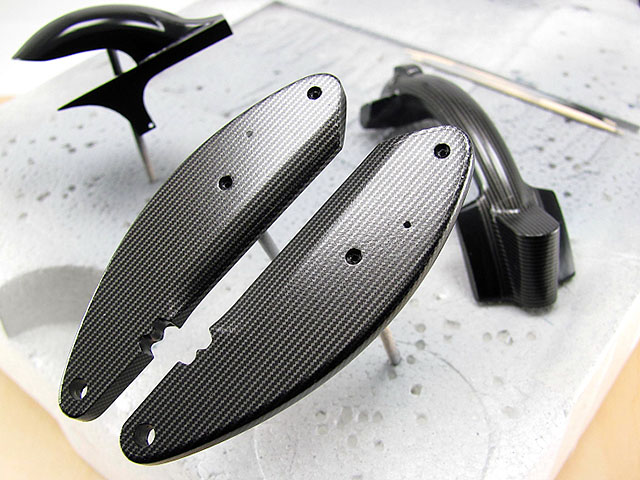

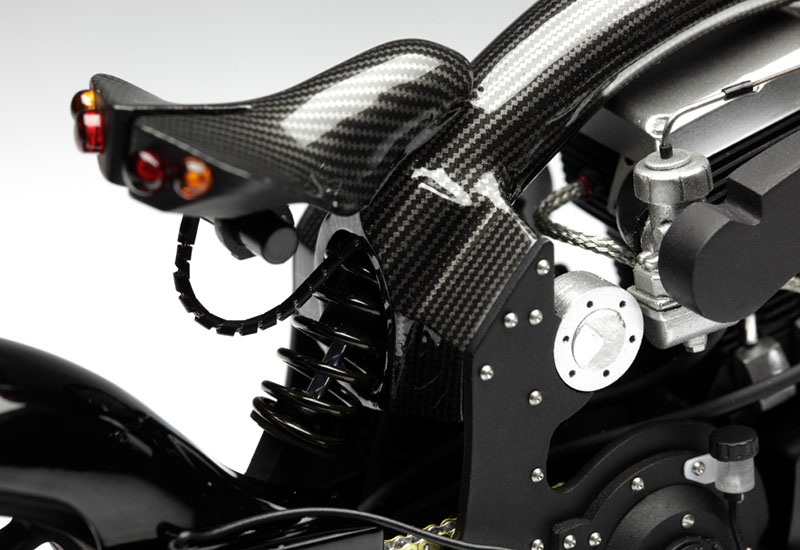

Application of carbon fiber decals:

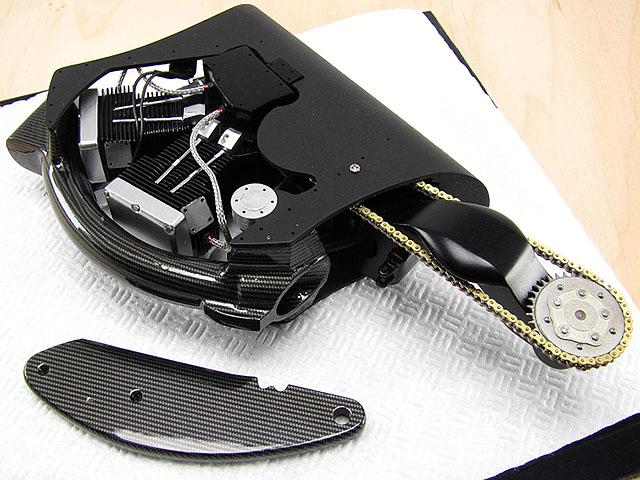

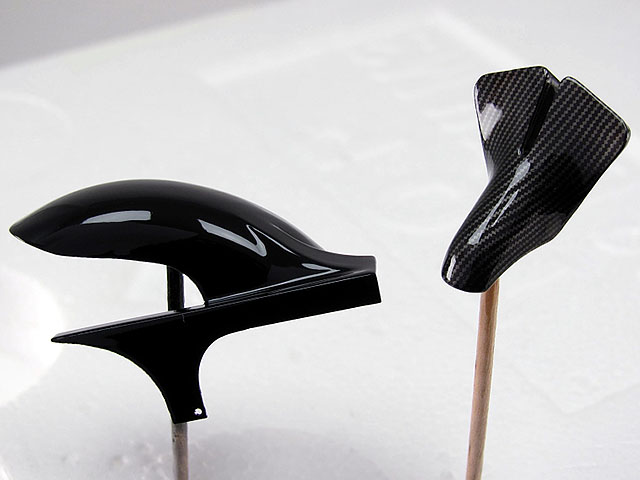

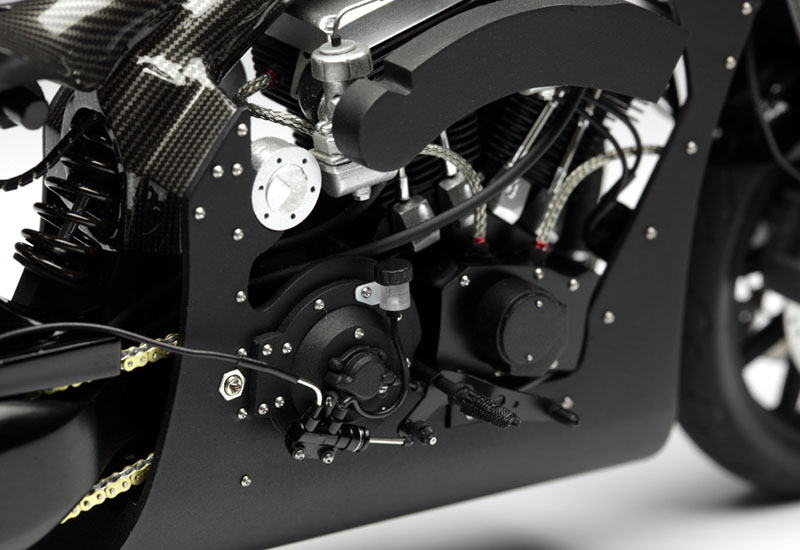

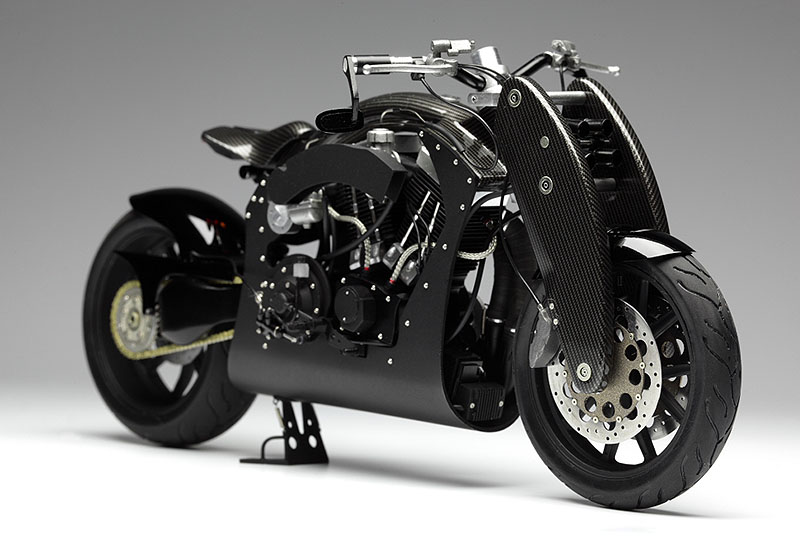

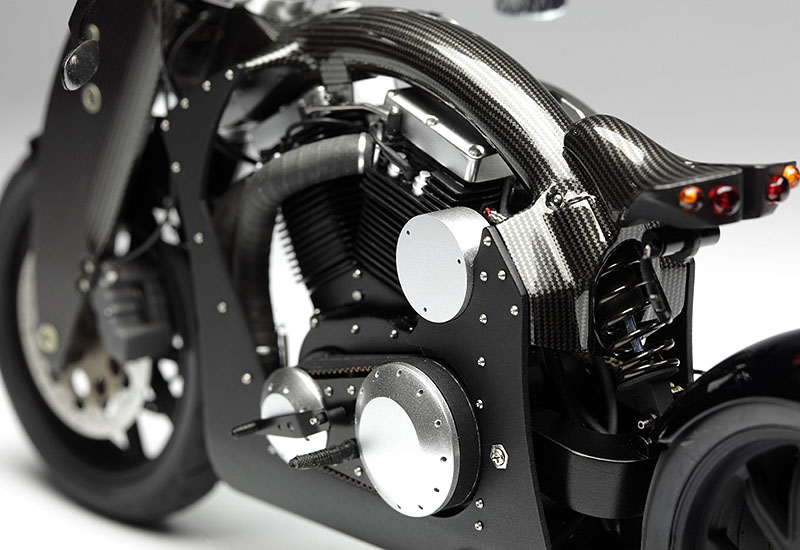

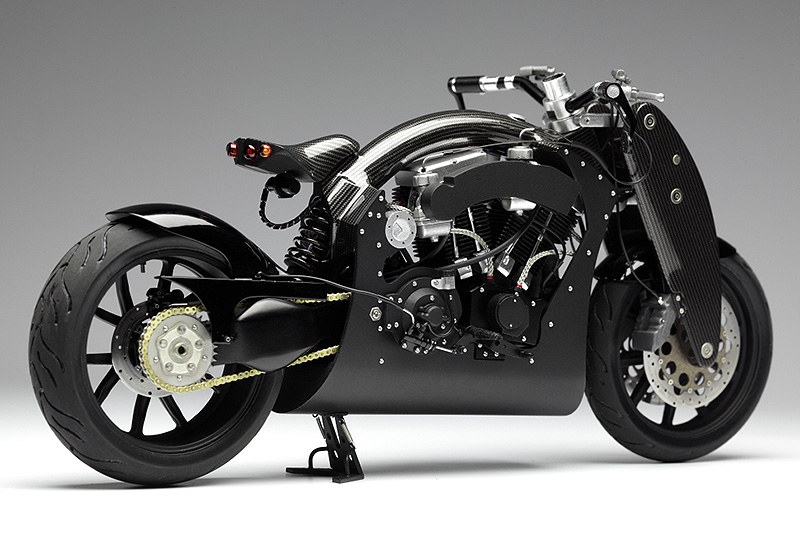

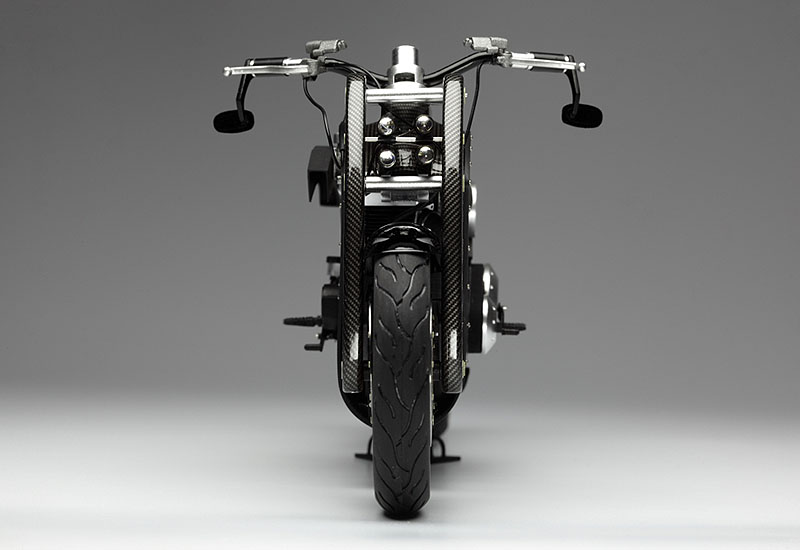

The process of painting and assembly:



The process of painting and assembly:


The process of painting and assembly:


The process of painting and assembly:

The process of painting and assembly:


The process of painting and assembly:



The process of painting and assembly:

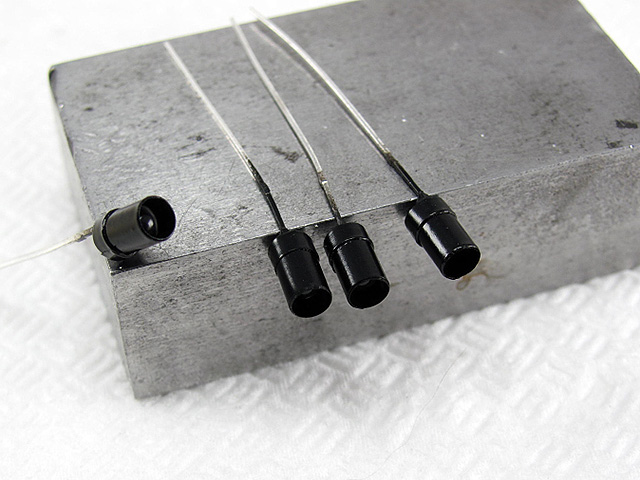

Front Light
Base - transparent LEDs 3mm + foil body

The process of painting and assembly:
